Overhead roller shutter sensor door security alarm magnetic contact Sensor

Product Specification:
  • Place Of Origin : Shenzhen, Guangdong
  • Model : SR-M54
  • Material : ABS
  • The warranty time : 2 yesrs
See Price
  1. Product Details

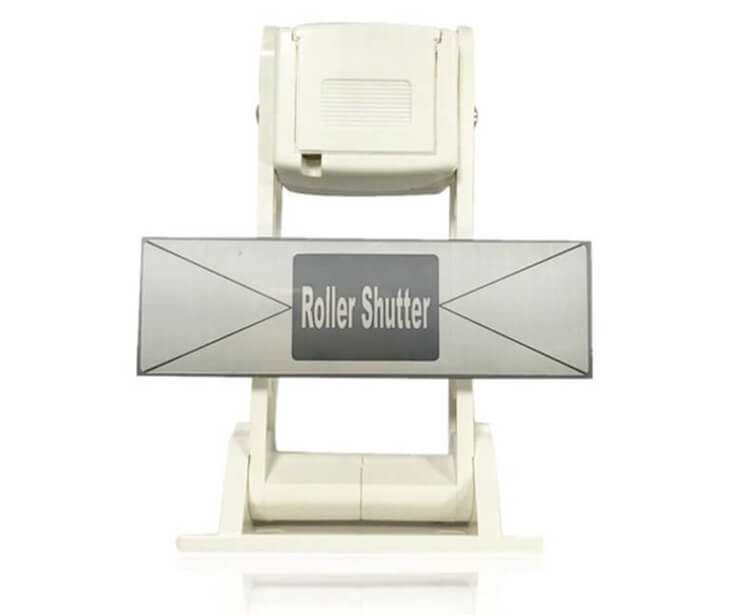

Overhead roller shutter sensor door security alarm magnetic contact Sensor

Key Specifications/Special Features for roller shutter sensor:
It is used for roller shutter system. It has adjustable bracket for mounting flexibility the magnetic contact is usually installed in exterior opening doors and windows that are reachable from the ground (or from another part of a building which is accessible from the ground - such as a garage). The contacts operate on the principle that when the door or window moves more that 1/2" from the frame, the magnetic field on the switch is removed and this breaks the alarm circuit (or zone) which trips off the system. Once tripped, the alarm signal cannot be stopped by just closing the door or window. Magnetic contacts are popular and widely used because they detect an intruder before he enters the protected premises. Using magnetic modulation and no power supply are required. It is a stable sensor which uneasy to be interfered around. This magnetic shutter sensor is superior on the market as the design are unique and convenient, which can adjust the height of up and down for 73mm and the fixed frame can move vertically in front and behind with 90 degree.

 General Details

Dimension 120 * 80 * 32mm
Case Material ABS
Color white
Gap 30-50 mm
Current / Voltage / Power 0.5A/100V/10W

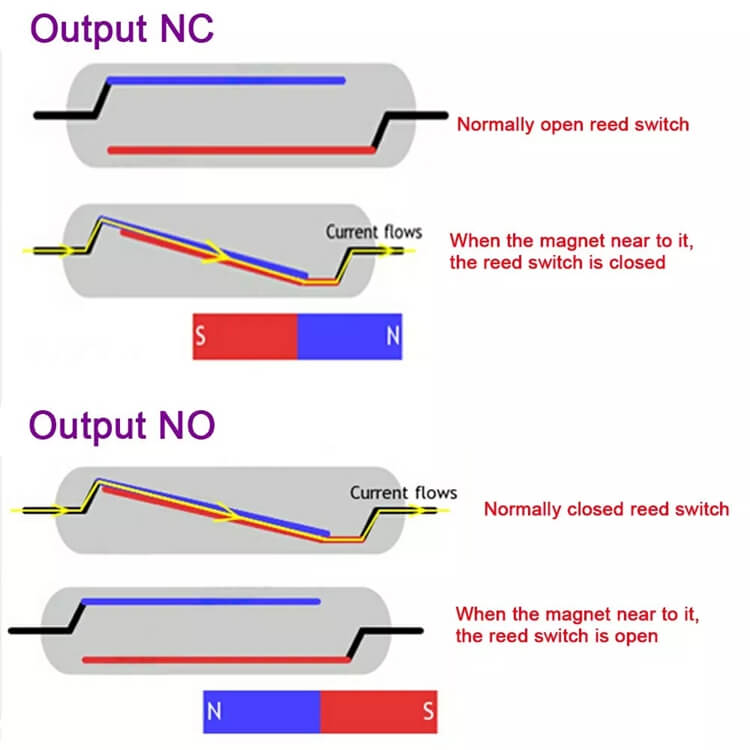

Output NC/NO/COM
Installation  upper ward install
Connection Cross screw terminals
Package 1set/bag

door roller shutter sensor
roller shutter sensor and roller shutter door magnetic contactroller shutter sensor/roller shutter door magnetic contact for safetyroller shutter sensor/roller shutter door magnetic contact

Shenzhen SUMRING technology Co.,Ltd is complete fire alarm solution factory over 15 years, products cover fire alarm control panel(fire detection system), fire detector, photoelectric smoke detector(interconnected photoelectric smoke alarms), wifi fire detector, heat detector, fire alarm bell, strobe siren, manual call point, LPG/natural gas detector, Carbon monoxide alarm, PIR detector(Motion detector) home security products(roller shutter sensor) etc. SUMRING owns trademarks “SUMRING”  and the  company implemented  ISO9001 standard management.

roller shutter door magnetic contact

SUMRING continuously follow the trend of global advanced fire alarm development, invest 20% of earns into research & development every year, release 2 new products in 6 months, right now SUMRING provide whole fire alarm solution covering 5 categories 46 items; and fire alarm products are certified by EN54(LPCB), EN14604(LPCB, TUV), CE and ROHS;

roller shutter door magnetic contact with ce rohs

ready to ship for roller shutter door magnetic contact
