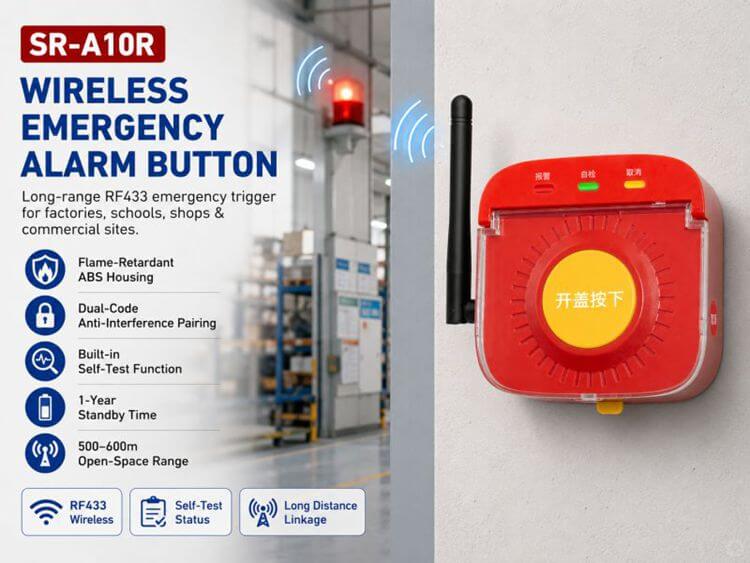

433MHz Wireless Manual Fire Call Point Button SR-A10R

1. Product Overview

Our SR-A10R wireless manual fire alarm button (MCP) is a wiring-free battery-operated fire emergency call button with 433MHz long-distance RF signal transmission up to 500m in open areas. Built with flame-retardant ABS housing, this wireless fire button features anti-tamper alarm protection, three-color LED status lights, dual-button design and one-key cancel reset function. This wireless fire call point button supports flexible many-to-one & one-to-many linkage modes, ideal for multi-floor commercial buildings, factories, shopping malls and all crowded public venues fire safety monitoring.

2. Core Product Features

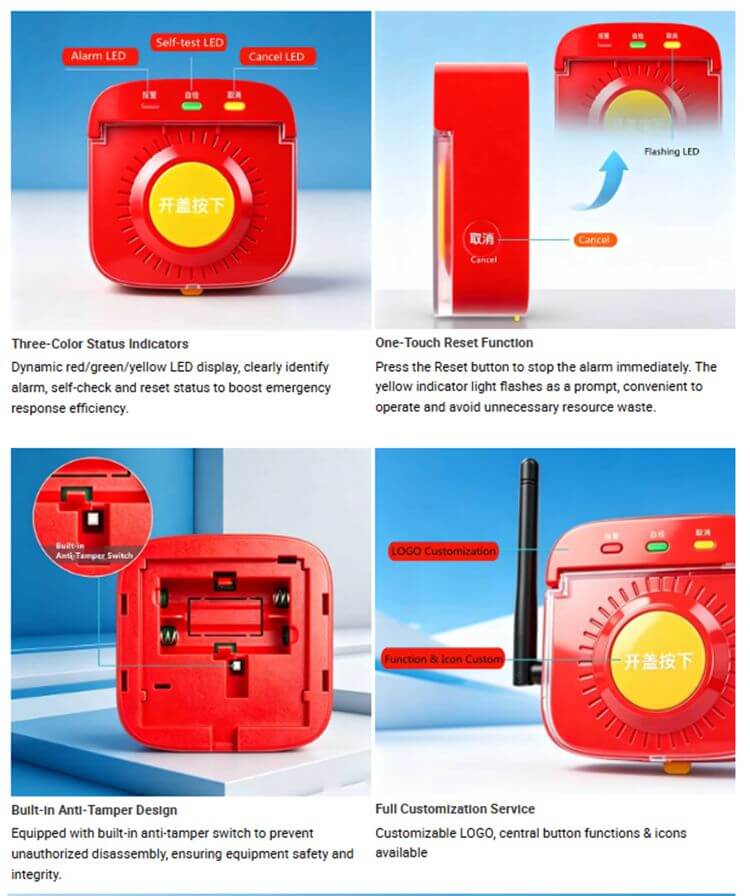

1. Dual-button Operation & One-key Cancel Function Equipped with main emergency trigger button and independent yellow cancel reset button. Press the reset button to stop the alarm signal instantly; the yellow LED indicator flashes to give clear operation prompts for users.

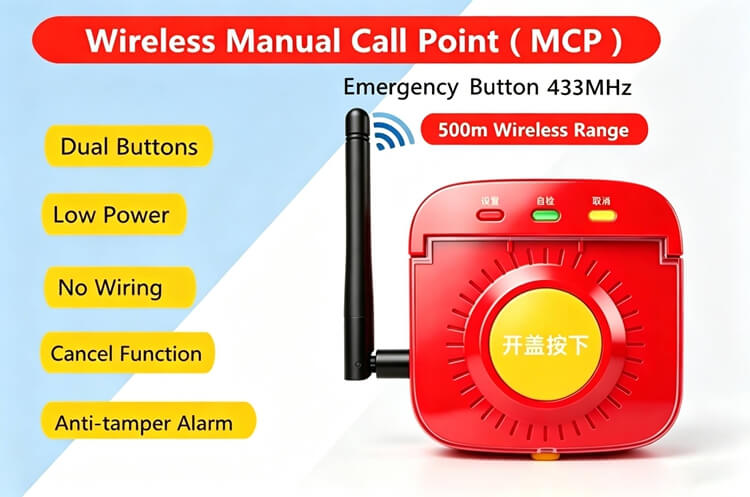

2. Three-Color LED Status Indicator Dynamic red, green and yellow LED lights separately display alarm, self-test and reset working status, allowing staff to quickly judge the equipment working state in emergency scenarios.

3. Built-in Anti-Tamper Alarm Design An internal anti-tamper switch is installed inside the device housing. It will trigger a warning signal if unauthorized disassembly or forced opening happens, fully guaranteeing equipment integrity and on-site fire safety.

4.

5. Ultra Low Power Consumption & Wiring-Free Installation Powered by DC 3V battery with ultra-low standby current (≤2μA) and alarm working current ≤18mA, which realizes long-term standby without frequent battery replacement. Fully wireless design removes complicated wiring construction, saving installation labor and time costs.

6. Long-distance Stable RF Wireless Transmission Supports optional 433MHz or 315MHz RF communication frequency, with a stable 400-500m signal transmission range in open areas. The external high-gain antenna ensures strong signal penetration for multi-story buildings.

7.

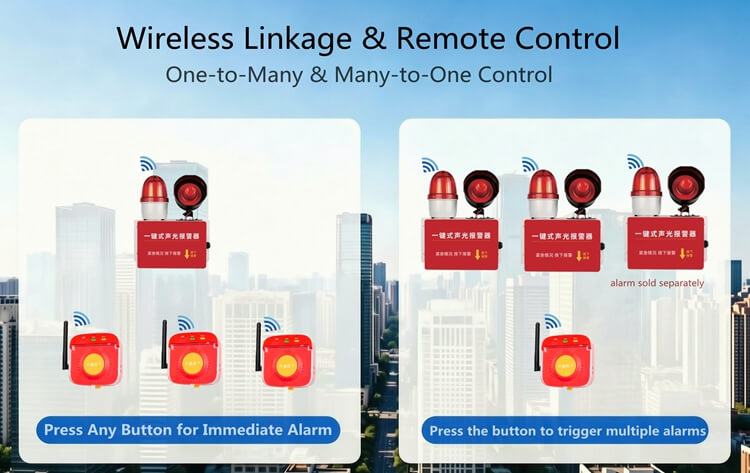

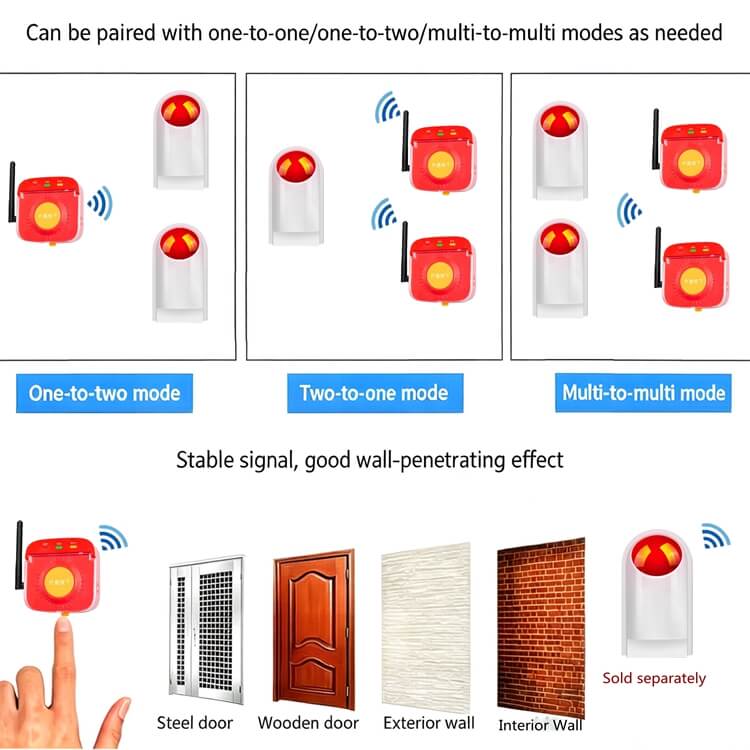

8. Two Modes of Wireless Linkage & Remote Control The wireless linkage system supports two flexible working modes to meet different building layout demands:

• Many-to-One Mode: Press any emergency call point button to send synchronous instant alarm signals to the central monitoring host.

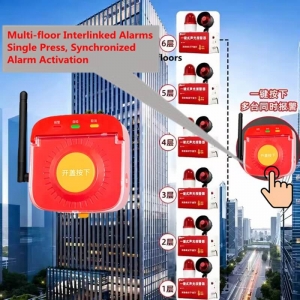

• One-to-Many Mode: A single press on one manual call point activates all matched wireless sound-light alarm devices in different floors and zones at the same time.
• Note: Sound-light alarm sirens are sold separately.

7. Full Customization Service Available We provide complete OEM customization support: customizable surface LOGO, central trigger button functions and pattern icons to match brand image and personalized project requirements.

3. Technical Specifications

4. Application Scenarios

This wireless manual fire call point SR-A10R is widely applicable for various large and crowded public places requiring complete fire safety monitoring systems:

• Commercial office buildings, shopping malls & supermarkets
• Industrial factories, warehouses & logistics parks
• Hotels, restaurants, entertainment venues
• Schools, hospitals, residential apartment compounds
• Exhibition halls, stadiums and other multi-area crowded venues

5. Product Advantages Summary

1. Wiring-free battery power supply, easy and fast installation without construction damage to buildings.
2. Ultra-low power design for long standby service life, low post-maintenance cost.
3. Anti-tamper structure prevents equipment damage and illegal disassembly, improving fire system stability.
4. Dual-button design with independent cancel function to reduce false alarm interference.
5. Long-distance 433MHz RF signal supports cross-floor linkage, covering large-area buildings.
6. Flexible many-to-one & one-to-many linkage modes to match different fire safety project layouts.
7. Flame-retardant ABS casing meets fire protection material standards, safe and durable for long-term use.
8. Support full OEM customization of LOGO and function icons for brand wholesale and engineering project orders.

FAQ

Q1: Is SR-A10R fully compatible with your SR-111R and SR-112R sound light alarms?
A1: Yes, all three models use unified 433MHz coding. After simple pairing, pressing SR-A10R will trigger all linked alarms
synchronously with no signal dead zone.

Q2: Does SR-A10R require wired connection during installation?
A2: No wiring is needed. It’s 100% wireless, can be mounted by screws or double-sided tape, which saves lots of labor and
construction costs.

Q3: What power supply does SR-A10R use and how long can the battery last?
A3: It runs on replaceable CR17450 3V lithium battery, with 2–3 years standby time under normal use. It also has low battery flash reminder.

Q4: Can SR-A10R prevent false accidental triggering?
A4: Sure. It is designed with a flip protective cover. You need to open the cover first then press the button, effectively avoiding misoperation from collision or random touch.

Q5: What application scenarios fit SR-A10R?
A5: It supports dual demands: fire rescue for factories, schools, warehouses; and elderly SOS emergency call for nursing homes, senior apartments.

Q6: Do you support OEM customization for bulk orders?
A6: Yes. We can customize printed brand LOGO, button icon patterns and coding protocols for engineering bulk orders, with a low OEM MOQ of 500 sets.
