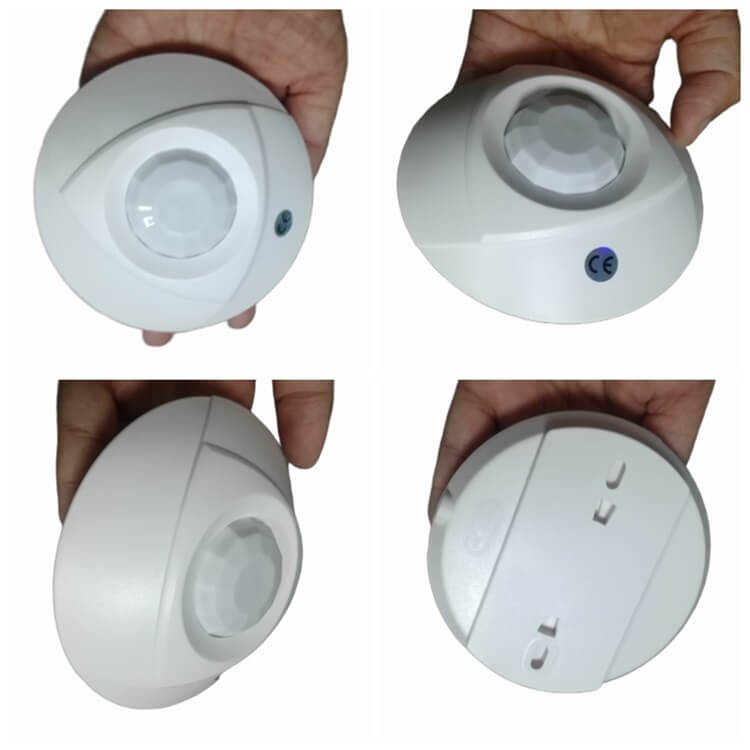

Wired motion detector
cheaper pir sensor price passive infrared sensor 12v motion sensor
Product Specification:
- Place Of Origin : Shenzhen, Guangdong
- Model : SR-603W
- Material : ABS
- Operating voltage : DC9V~16V
- The warranty time : 2 yesrs
- Product Details
Cheaper pir sensor price passive infrared sensor 12v motion sensor

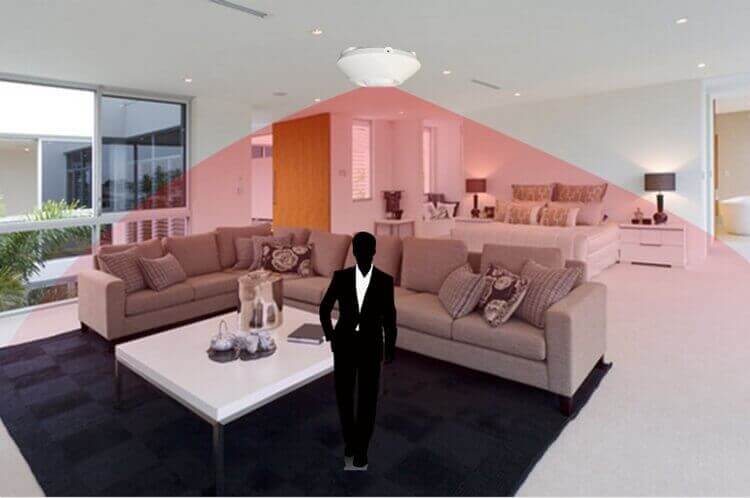

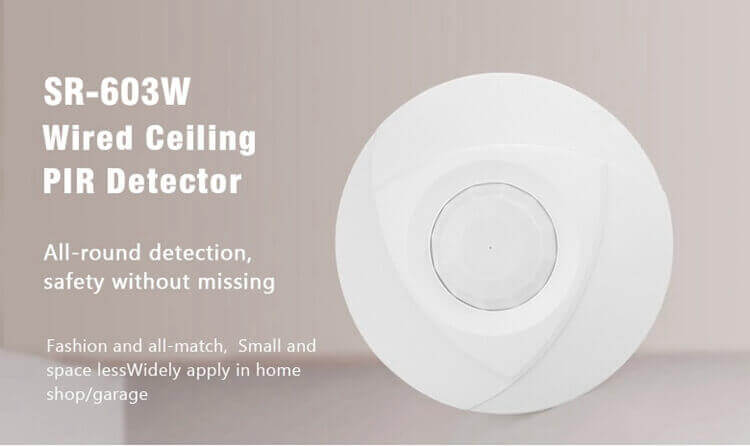

The SR-60W is wired ceiling passive infrared detector with high stability. It adopts advanced signal processing technology, Double temperature compensation, Pulse count adjustment, high stability SMT manufacture technology, providing super high detection and anti-falsealarm abilities, and MCU processing ensuring the reliability from the design basis.When an intruder passes through the detection area, the detector will detect the movements of human body automatically.If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential house,villas, factories, shopping malls, warehouses and office buildings etc.
| Model NO | SR-603W |
| Operating voltage | DC9V~16V |
| Static current | NC≤15mA NO≤6mA |
| Alarm current | NC≤9mA NO≤18mA |
| Alarm output | Relay output （N.C. or N.O.） |
| Detecting angle | 360° |
| Detecting distance | 6m |
| how to install | Wall/ceiling installation |
| Alarm time optional | 3s or 30s |
| Anti white light interference | yes |
| Patent appearance design | yes |
| Working environment | -10℃~+50℃,(≤95%RH No congelation) |
| Dimension | 100mm(Dia)*32mm(H) |
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarms products and home security products
Q2:What is the moq of the Ceiling Motion Sensor?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
