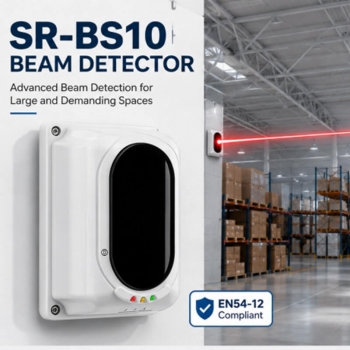

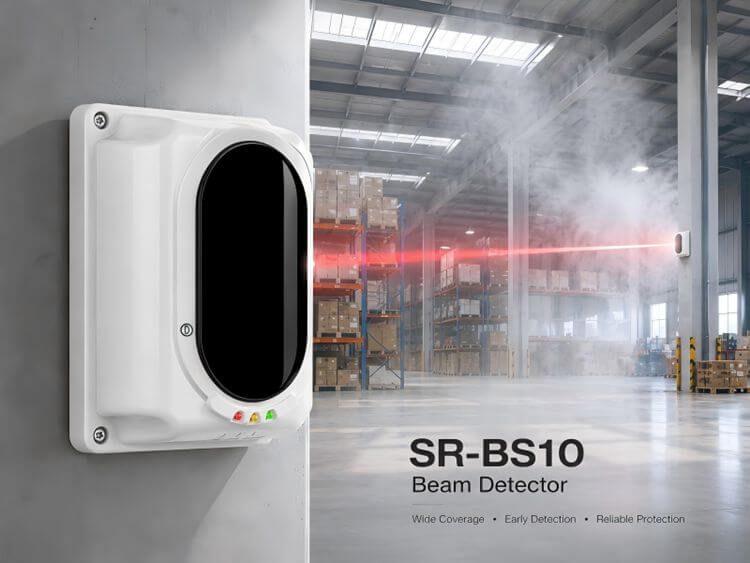

Advanced Beam Detection Infrared Beam Smoke Detector
Product Specification:
- Place Of Origin : Shenzhen, Guangdong
- Model : SR-BS10
- Material : ABS
- Operating voltage : 24VDC (Non-polarity), Range
- The warranty time : 2 yesrs
- Product Details

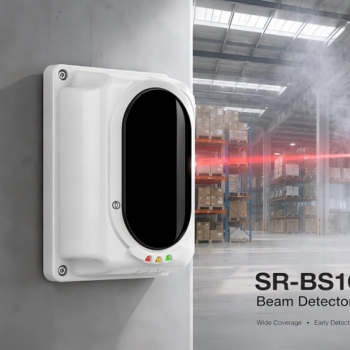

The SR-BS10 Infrared Beam Smoke Detector is engineered to provide superior fire safety in expansive environments where traditional point detectors fall short. Utilizing advanced infrared beam technology, the SR-BS10 offers wide coverage and early detection, ensuring stable performance even in challenging conditions. With features like automatic compensation and smart diagnostics, it is the ideal solution for protecting large-scale assets.

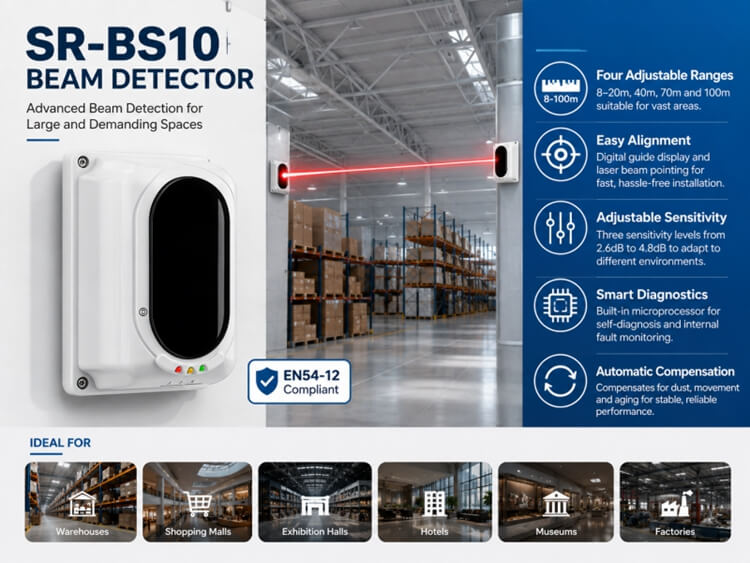

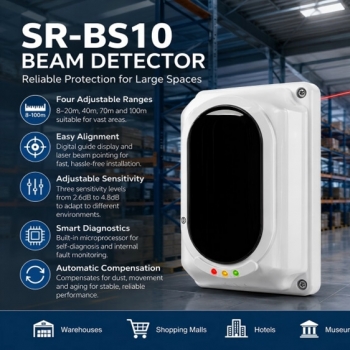

2. Key Features
- Wide Detection Range: Features four adjustable ranges (8–20m, 40m, 70m, and up to 100m), making it perfectly suitable for vast areas and high ceilings.

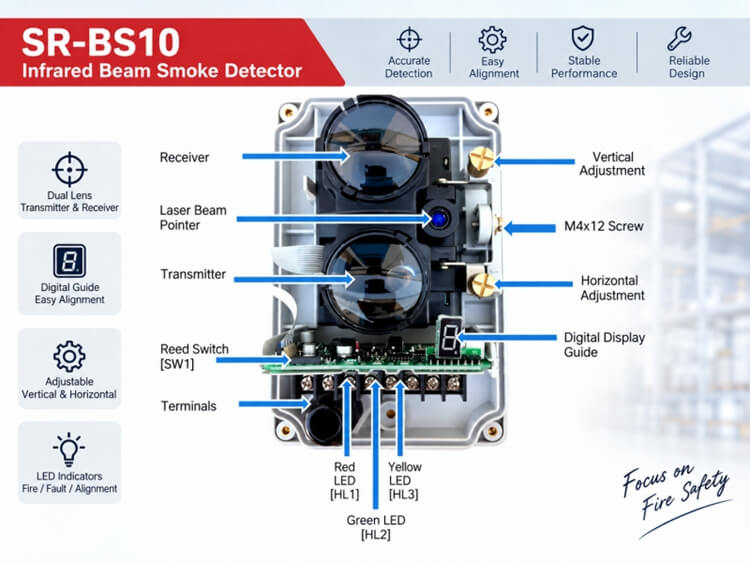

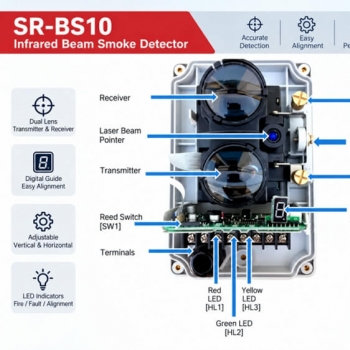

- Easy Alignment System: Equipped with a digital guide display and a precise laser beam pointer for fast, hassle-free installation and alignment.
- Adjustable Sensitivity: Offers three sensitivity levels (from 2.6dB to 4.8dB) to adapt to different environmental requirements and reduce false alarms.
- Smart Diagnostics: Built-in microprocessor allows for self-diagnosis and internal fault monitoring, ensuring the system is always ready.
- Automatic Compensation: Intelligently compensates for dust accumulation, structural movement, and component aging to maintain stable, reliable performance over time.
- Certified Safety: Fully compliant with EN54-12 standards for reliability and safety.

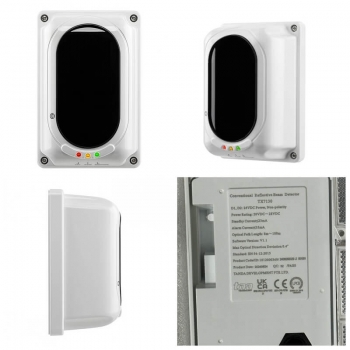

| Feature | Specification |
|---|---|
| Product Model | SR-BS10 (Ref: TX7130) |
| Type | Conventional Reflective Beam Detector |
| Power Supply | 24VDC (Non-polarity), Range: 20VDC – 28VDC |
| Standby Current | ≤ 31mA |
| Alarm Current | ≤ 31mA |
| Optical Path Length | 8m – 100m |
| Max Optical Diversion Deviation | 0.4° |
| Software Version | V1.1 |
| Compliance Standard | EN 54-12:2015 |
| Protection Rating | IP65 (Based on label icon) |
| Certifications | UKCA, CE, LPCB |

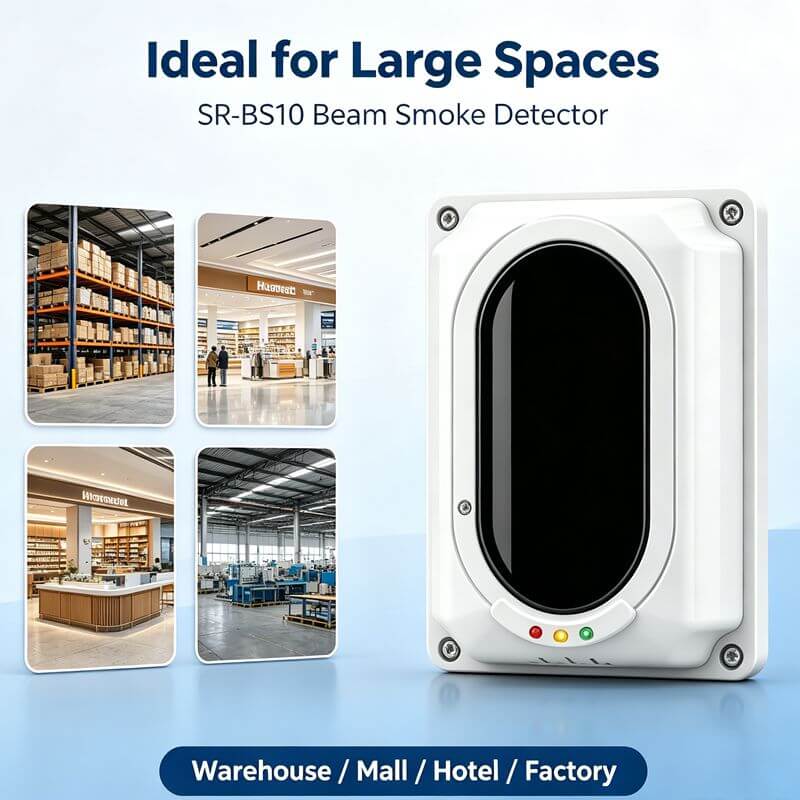

5. Ideal Applications
The SR-BS10 is specifically designed for large facilities where standard smoke detectors are impractical:
- Warehouses & Logistics Centers
- Factories & Industrial Plants
- Shopping Malls & Atriums Museums & Exhibition Halls
- Hotels with High Ceilings
- Airports & Train Stations
6. Why Choose SR-BS10?
- Cost-Effective: Covers a massive area with a single device, reducing the number of units needed compared to point detectors.
- Low Maintenance: Automatic dust compensation means fewer false alarms and less frequent cleaning.
- Global Compliance: Meets rigorous European (EN54-12) and UK (UKCA) safety standards.
